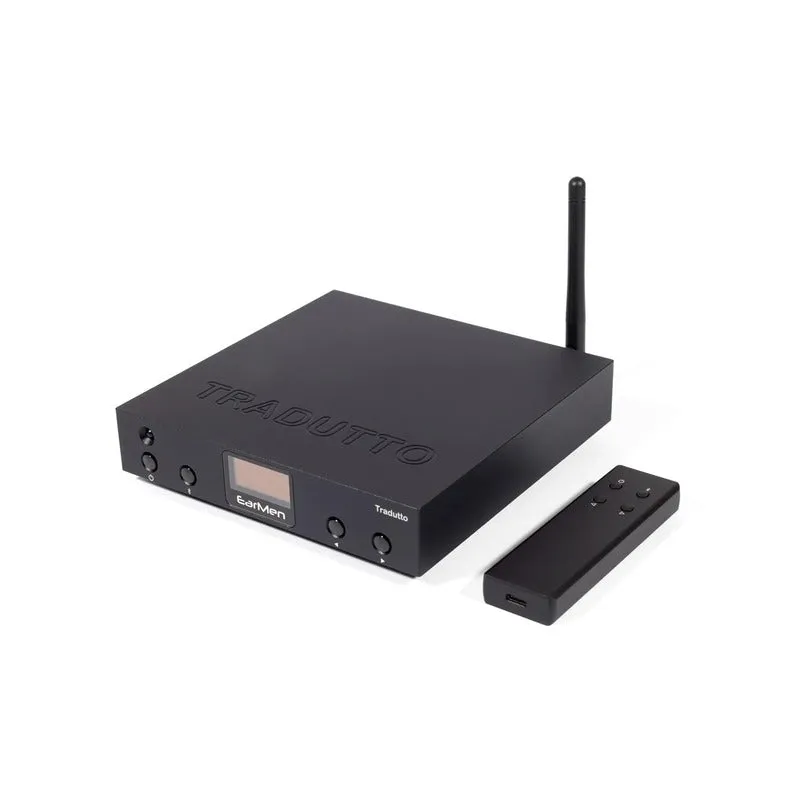

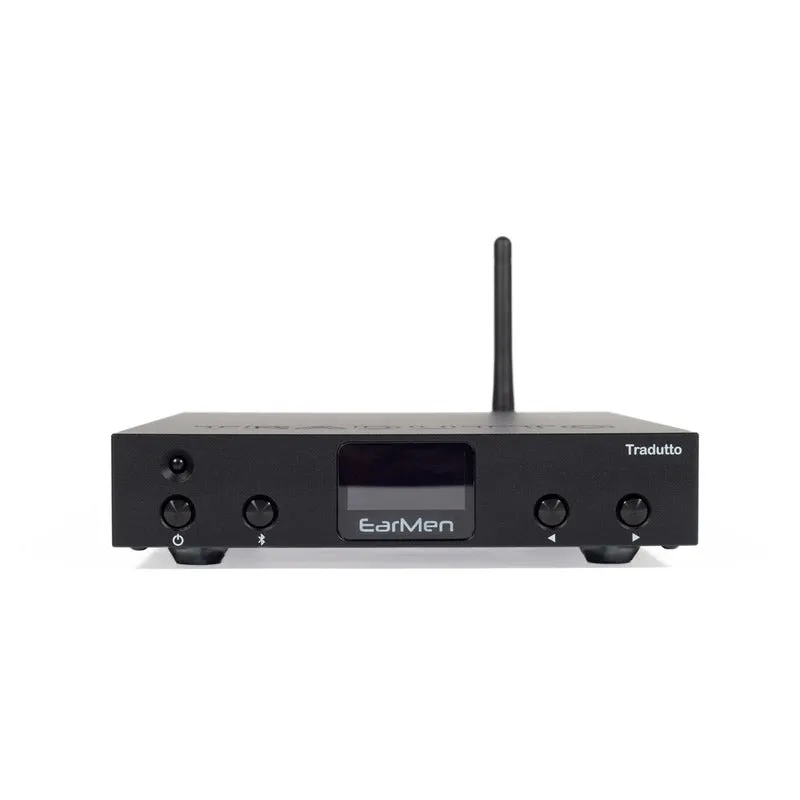

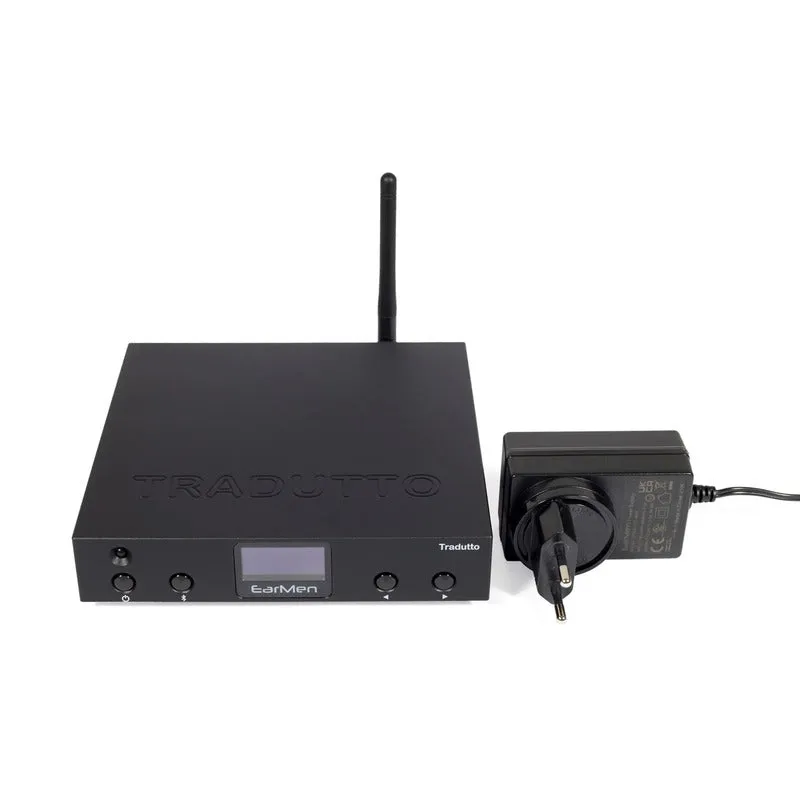

EarMen Tradutto: Balanced DAC with Hi-Res Wireless Playback
The EarMen Tradutto lets you experience high-resolution sound no matter the source. Plug in through the Tradutto's HD inputs or connect wirelessly through high-resolution Bluetooth. With an ESS DAC chip, Qualcomm HD Bluetooth, and XMOS 16-core chip under the hood, you can enjoy music from any source at the highest quality possible for a truly immersive sound experience at home or in the studio.
Wired and Wireless HD Audio support so you can enjoy the best sound with the EarMen Tradutto
The EarMen Tradutto has all the inputs you need to enjoy music at the highest quality from any source.
Plug in your phone, tablet, and other digital audio devices through the digital optical, digital coaxial, and USB inputs. Connect seamlessly through Bluetooth 5.1 and stream hi-res audio via AAC/SBC/aptX/aptX LL/aptX HD codecs.
ESS Saber DAC Chip so you can hear every detail with exceptional clarity
The Tradutto Desktop DAC is equipped with an advanced Saber DAC chip so you can enjoy music at the highest resolutions. The Saber ES9038Q2M DAC supports digital audio streams up to 32bit/768kHz or DSD512, allowing you to hear music as the artist intended.
XMOS 16-core chip for a clean and accurate sound experience
Working alongside the powerful Saber DAC chip is an XMOS 16-core chip. The XMOS chip enables MQA support, so you can experience true high-resolution sound through Tidal Masters.

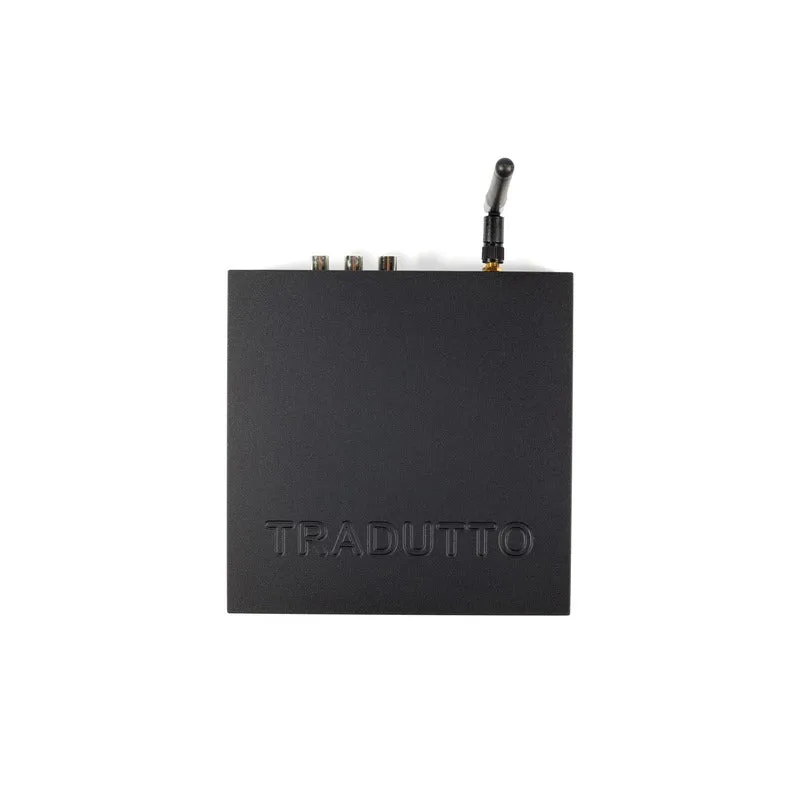

The EarMen Tradutto DAC features a Full Aluminum Chassis for enhanced durability
The EarMen Tradutto is built to last. The Tradutto's aluminum chassis helps protect its sophisticated internals, so you can enjoy quality sound for years to come.
Tradutto Specifications

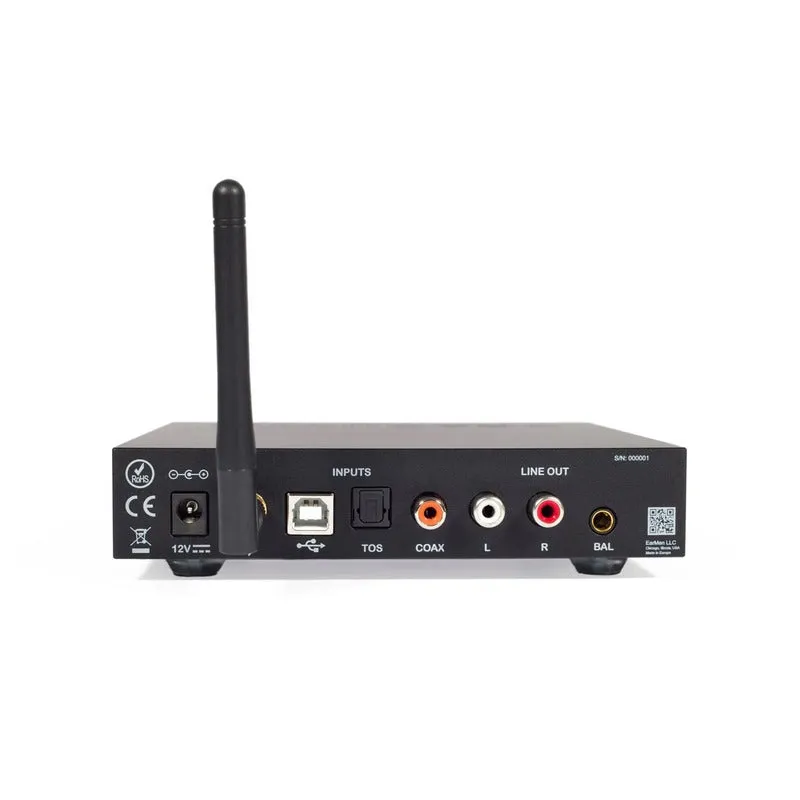

Inputs
Bluetooth: Bluetooth 5.1™ ( AAC, SBC, aptX, aptX HD, aptX LL )
USB
TOSLINK: S/PDIF optical
Coaxial: S/PDIF
Outputs
RCA (SE output): output impedance = 300 Ω
Balanced 4.4mm: output impedance = 600 Ω
Audio Formats
PCM: up to 768kHz
DSD: DoP64, DoP128, DoP256, native DSD512
DXD: up to 768kHz
MQA: OFS (MQB/MQA Core), MQA, MQA Studio
Bluetooth: 44.1kHz – 192kHz/16bit – 24bit
Single-End Output
USB Input
Output Level: 2Vrms 0dBFS
THD N: 0.0003%
SNR: >116dB
Freq. Response: ±0.014dB
S/PDIF Input/BT
Output Level: 2Vrms 0dBFS
THD N: 0.0003%
SNR: >116dB
Freq. Response: ±0.006dB
Fully Balanced Output
USB Input
Output Level: 4Vrms 0dBFS
THD N: 0.0003%
SNR: >120dB
Freq. Response: ±0.03dB
S/PDIF input/BT
Output Level: 4Vrms 0dBFS
THD N: 0.0003%
SNR: >>122dB
Freq. Response: ±0.03dB
Dimension LxHxW
150x30x150 mm
5,9"x1,18"x5,9"
Weight
550 grams
1,21 lbs
Tradutto User Manual
