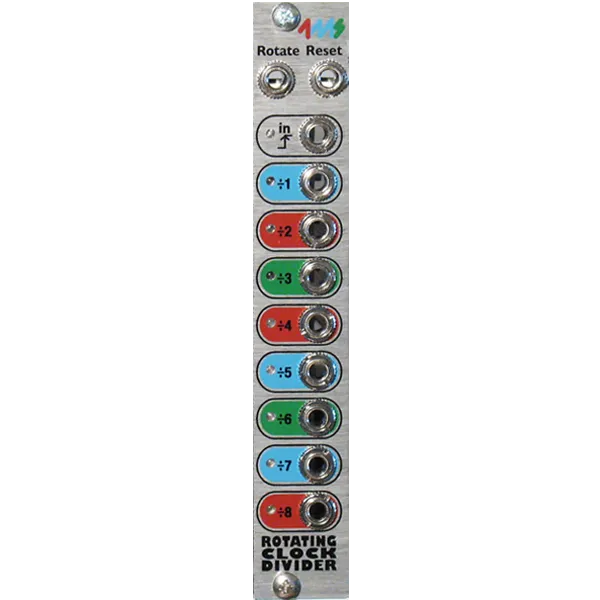

• FEATURES
• • 4 H.P. Eurorack format
  • Divide-by-1 to Divide-by-64, on 8 output jacks
  • CV Rotate jack to shift divide-by amount on each jack
  • CV Reset jack to reset/re-sync all jacks
  • Optional break-out panels to expand functionality (Auto-reset, selectable Divide-by range, Gate/Trigger, Up/Down-counting)
  • Depth: 48mm (1.85")
  • Clock Input (5V to 15V clock, rising edge triggered), max 3kHz
  • CV Rotate (0V to 5V input)
  • CV Reset (5V to 15V trigger)
  • Divided Clock Outputs (8 jacks):
    • Divide-by-(1 R)
    • Divide-by-(2 R)
    • Divide-by-(3 R)
    • Divide-by-(4 R)
    • Divide-by-(5 R)
    • Divide-by-(6 R)
    • Divide-by-(7 R)
    • Divide-by-(8 R)
    ...where R is the CV Rotation.
  • Selectable Gate/Trigger mode:
  • Selectable Divide range up to Divide-by-64:
    Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.
  • Selectable Auto-reset:
    Auto-reset will reset the divide counter every 16/24/32 clocks, which keeps the beats more "dance-able" even when using the "weird" clock divisions (3/5/6/7/9/10/11/etc..) Two jumper pins on the back can be pre-set with jumpers plugs, or used with (forthcoming) breakout panel.
