description

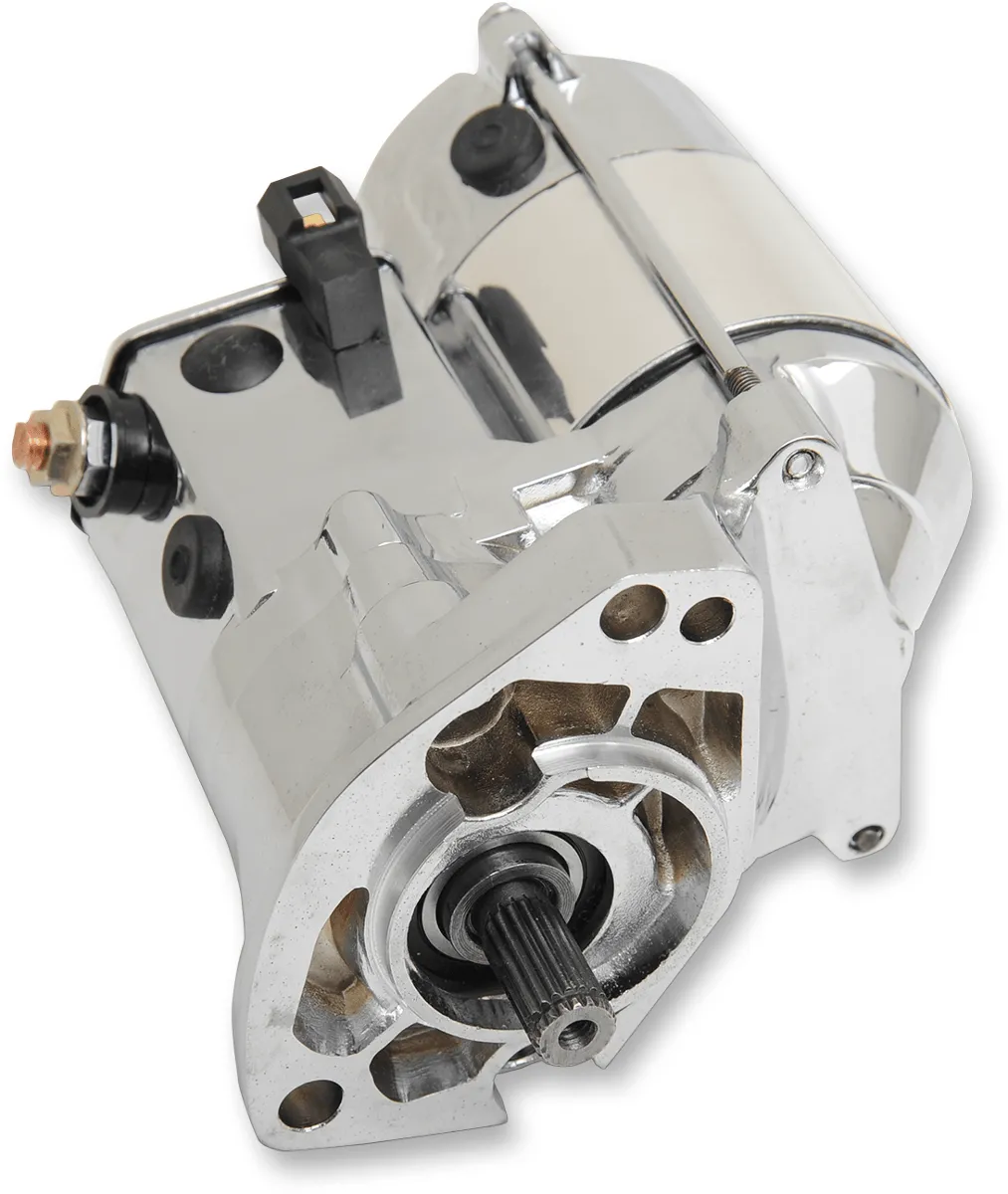

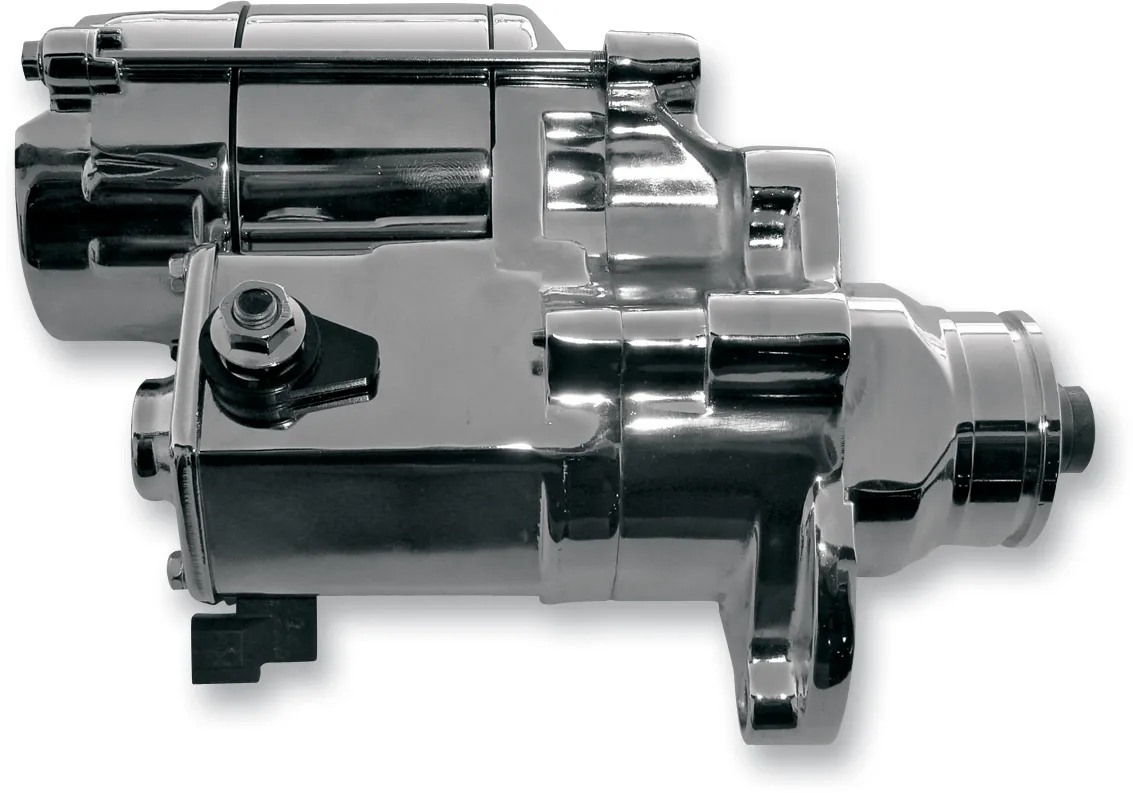

Nipondenso starters are assembled in the USA with heavy-duty components and tested with state-of-the-art equipment. Solenoid plunger, return damper and springs are replaced with stronger components. Clutch shaft and rollers are replaced with precision-ground and hardened parts for longer service life. All components are assembled with a special lube that has been formulated for starter roller clutch applications. CNC-machined billet mounting noses are held together with aerospace fasteners. After assembly, all starters go to a dyno test including hi-low voltage, stall torque, solenoid engagement, amperage draw, load test, maximum rpm and motor impulse wave form. Starters have a 4.4:1 gear reduction and produce 46% more cranking torque than the stock starter. Starters available in four kilowatt ratings (1.2, 1.4, 1.6 and 2.0). Choose from two finishes: black wrinkle or polished/chrome. Made in the USA The 1.2/1.4/1.5 kW starters are designed for OEM applications; use Terry battery cables and a battery with 300 cranking amps like the Drag Specialties battery for best results.

fitment

• XL1200C Sportster 1200 Custom 1996-2019
• XL1200CX Roadster 2016-2020
• XL1200L Sportster 1200 Low 2006-2011
• XL1200N Sportster 1200 Nightster 2007-2012
• XL1200NS Iron 1200 2018-2020
• XL1200R Sportster 1200 Roadster 2004-2008
• XL1200S Sportster 1200 Sport 1996-2003
• XL1200T SuperLow 1200T 2014-2017
• XL1200V Seventy-Two 2012-2016
• XL1200X Forty-Eight 2010-2020
• XL1200XS Forty-Eight Special 2018-2019
• XL50 50th Anniversary Sportster 2007
• XL883 Sportster 2004-2008
• XL883C Sportster 883 Custom 1999-2009
• XL883L Sportster 883 Low 2005-2010
• XL883L SuperLow 2011-2019
• XL883N Iron 883 2009-2020
• XL883R Sportster 883 Roadster 2002-2003
• XL883R Sportster 883 Roadster 2005-2007
• XLH1000 1981-1985
• XLH1100 1986-1987
• XLH1200 1988-2003
• XLH883 1986-2003
• XLH883DLX Sportster 883 Deluxe 1986-1995
• XLH883HUG Sportster 883 Hugger 1987-2003
• XLS Roadster 1981-1985
• XLX 1000 1983-1985
