The is the upgraded version of XTAR VC2S. On the basis of retaining all the functions of VC2S, the VC2SL uses USB-C input port and can charge protected 21700 batteries.
Specifications - USB Type-C port
- Compatible with 3.6/3.7V Li-ion and 1.2V Ni-MH batteries
- Can charge protected 21700 batteries
- Support charging current 1x2A, 2x1A, 2x0.5A
- Battery internal resistance test
- Portable power bank function
- Safe charging with multiple protections
Compatibility XTAR VC2SL household battery charger is compatible for:
3.6V/3.7V Li-ion/IMR/INR/ICR 10440/14500/14650/16340(RCR123),
17335/17500/17670,
18350/18490/18500/18650/18700,
20700/21700/22650/25500/26650,
And 1.2V Ni-MH/Ni-CD AAAA/AAA/AA/A/SC/C/D batteries.

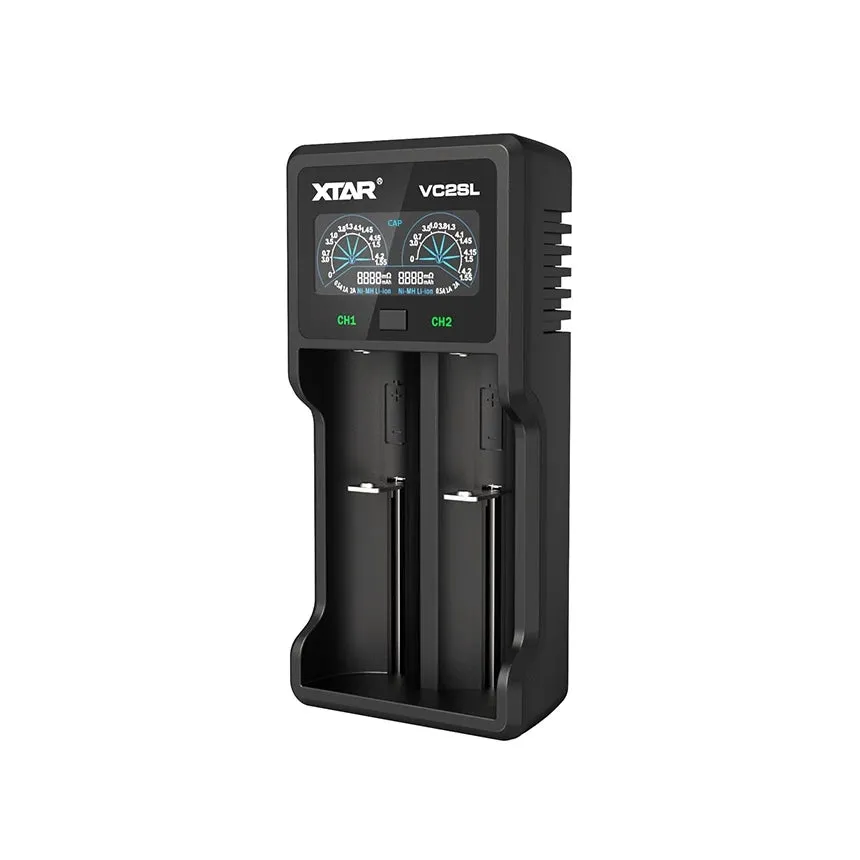

High definition LCD displays
The LCD display of VC2SL 18650 charger could show real time charging status, press the button to switch the display of CAP(charged capacity)-CCR(real-time charging current)-IR(internal resistance).Two sets of led indicators show independently when charging, making the charging process visible status and stopping once completing charge intelligently.
Type C Fast Charger Compatible - with any 5V USB power including USB wall adaptors, cell phone chargers, solar panel, PC USB, etc. Use 5V 2.1A can maximize the advantages of the fast VC2SL charger, the charging current is 2A*1/1A*2/0.5A*2, it takes about 1.5hr to fully charged 1 pc 18650 3000mAH li-ion battery.
USB Output Function - XTAR VC2SL rechargeable battery charger comes with 5V / 1A USB output function. It is designed with Power-Path Management, when you plug the power supply, insert the battery and connect USB devices, USB devices get charged directly from the power supply instead of the battery, which can not only improve efficiency, but also extend the battery lifespan.
With advanced MCU control and intelligent V and - V cut-off charging tech, multiple protection like over-heat and over-current protection, short-circuit protection, non-rechargeable and defective battery detection, multiple protect function to ensure safer charging.
Package Includes:
1x VC2SL Charger
1x USB C Cable
1x Manual *batteries not included
**Optional USB Mains adapter - QC3.0 Fast charging adapter offering 18W output with Intelligent and safe charging. Multiple safety protections and works on a wide MAINS voltage range 100-240 AC*
Safety Tips:
- Never leave a charger unattended overnight, and never in direct sunlight.
- Never use your charger to store cells. When cells are finished charging, please remove them from the device.
