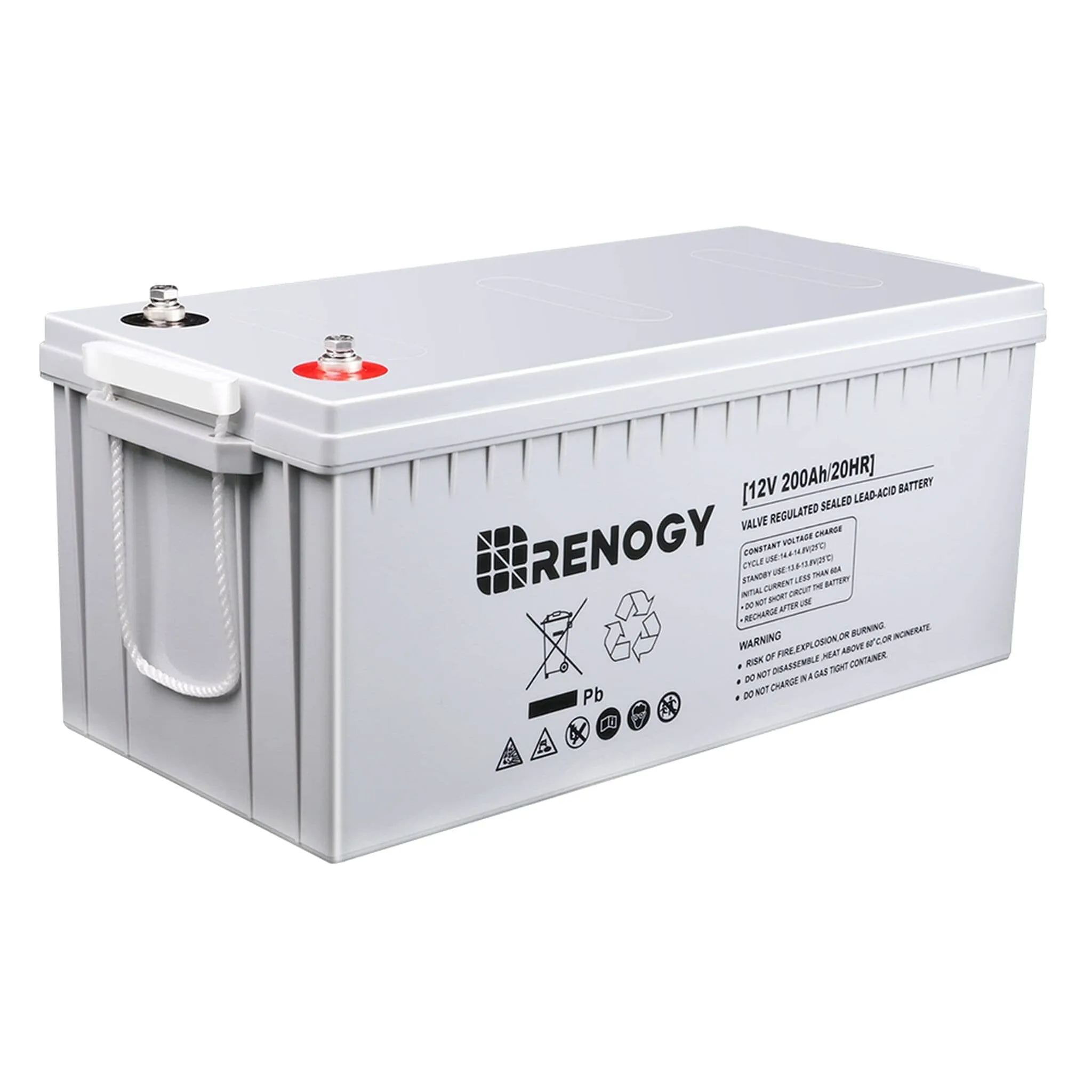

Name: Renogy Deep Cycle AGM Battery 12 Volt 200Ah
SKU: 505944

Renogy Deep Cycle AGM Battery 12 Volt 200Ah

$ 50.44

$ 65.57

Save: $

Title:

DefaultTitle

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

Looking for a reliable, high performing battery with practicality in mind? Renogy’s 12V Deep Cycle AGM Battery is an excellent choice for standby or daily power needs. Built tough with a leak-proof design, this maintenance-free battery was designed with solar energy storage applications in mind and provides optimum performance even at freezing temperatures. Ensure that your vehicle or off-grid solar system stays powered on with Renogy’s AGM batteries.

KEY FEATURES:

Maintenance Free

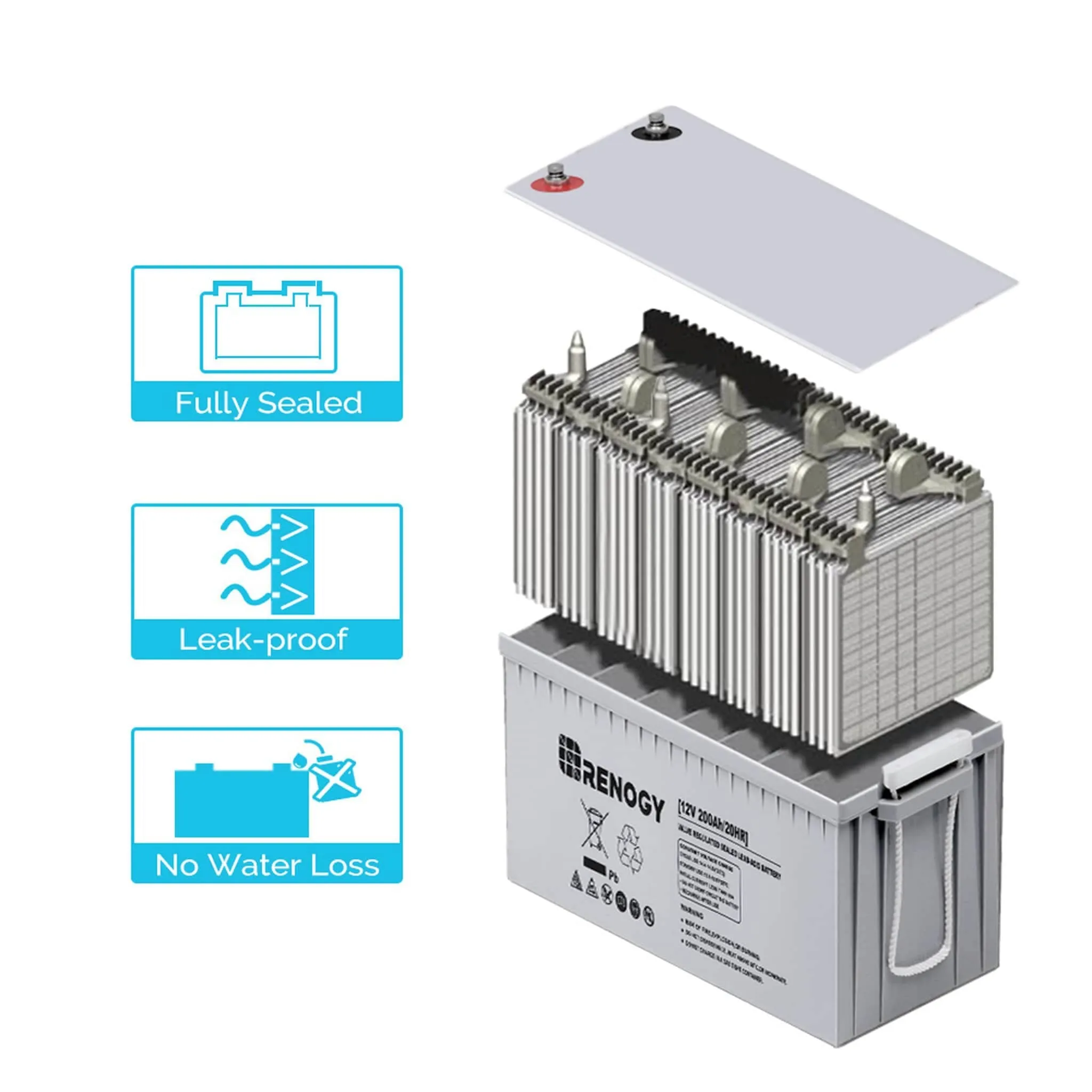

Manufactured with thick absorbent glass mat (AGM) separators and advanced valve regulated technology, Renogy Deep Cycle AGM Batteries save you from acid leakage and frequent maintenance

Excellent Discharge Performance

Proprietary quinary alloy plates and specially treated plate grids enable low internal resistance and high discharge currents of up to 10 times the battery rated capacity

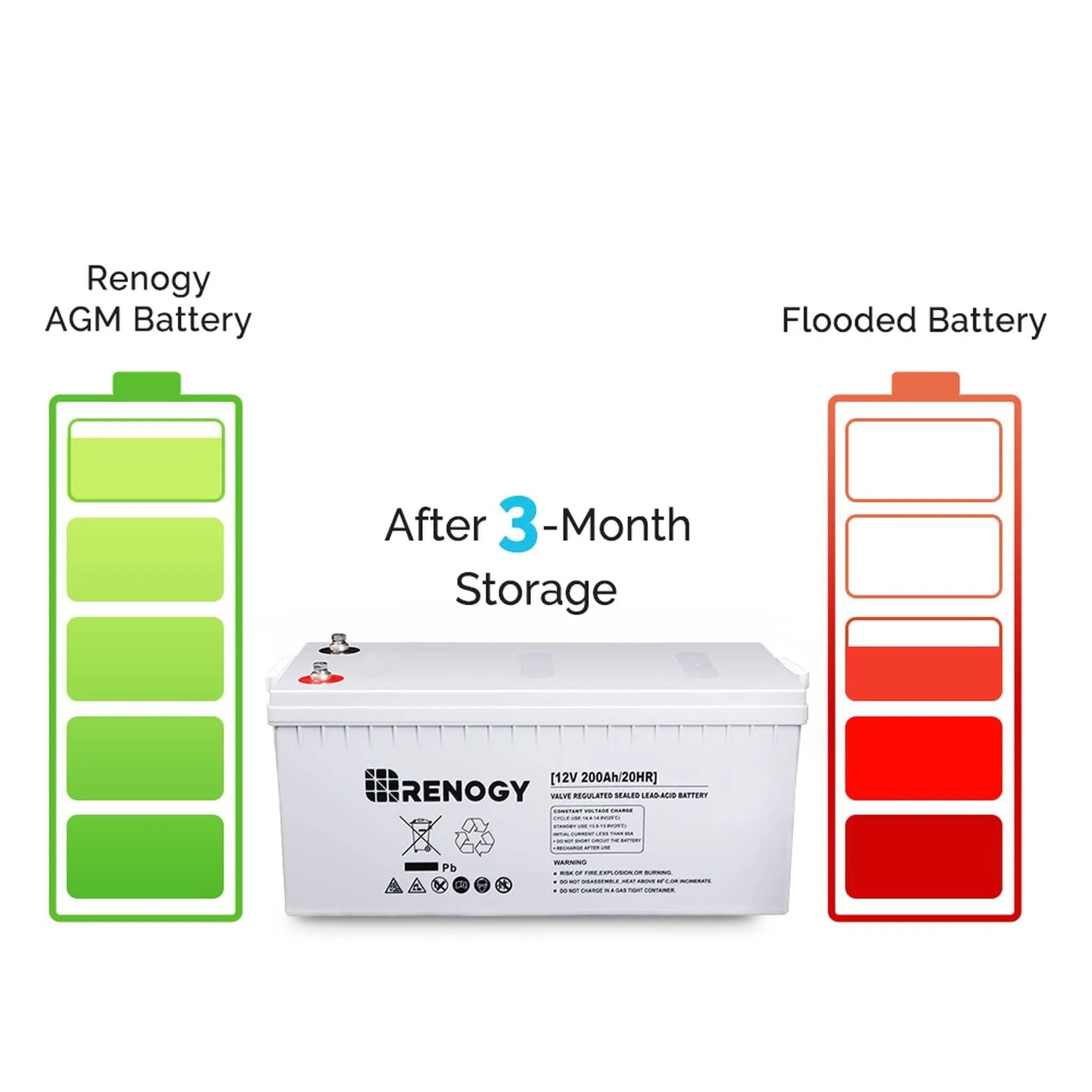

Long Shelf Life

Made of high purity materials, Renogy Deep Cycle AGM Batteries reduce the monthly self-discharge rate below 3% at 77°F (25°C), which is 5 times lower than their flooded counterparts

Wide Operation Temperature Range

Improved electrolyte formula ensures stable battery capacity and outstanding discharge performance at low temperatures below 32°F (0°C).

RENOGY DEEP CYCLE AGM BATTERY 12V 200AH
Nominal Voltage: 12V	Rated Capacity: 200Ah@20hr-rate to 10.5V (25°C / 77°F)
Reference Capacity: C3: 152.9Ah; C5: 172.3Ah; C10: 190.5Ah; C20: 200Ah	Float Charging Voltage: 13.6V~13.8V (25°C / 77°F); Temperature Compensation: -18mV/°C
Cycle Use Voltage: 14.4V~14.8V (25°C / 77°F); Temperature Compensation: -24mV/°C	Equalization Voltage: 14.2V (25°C / 77°F)

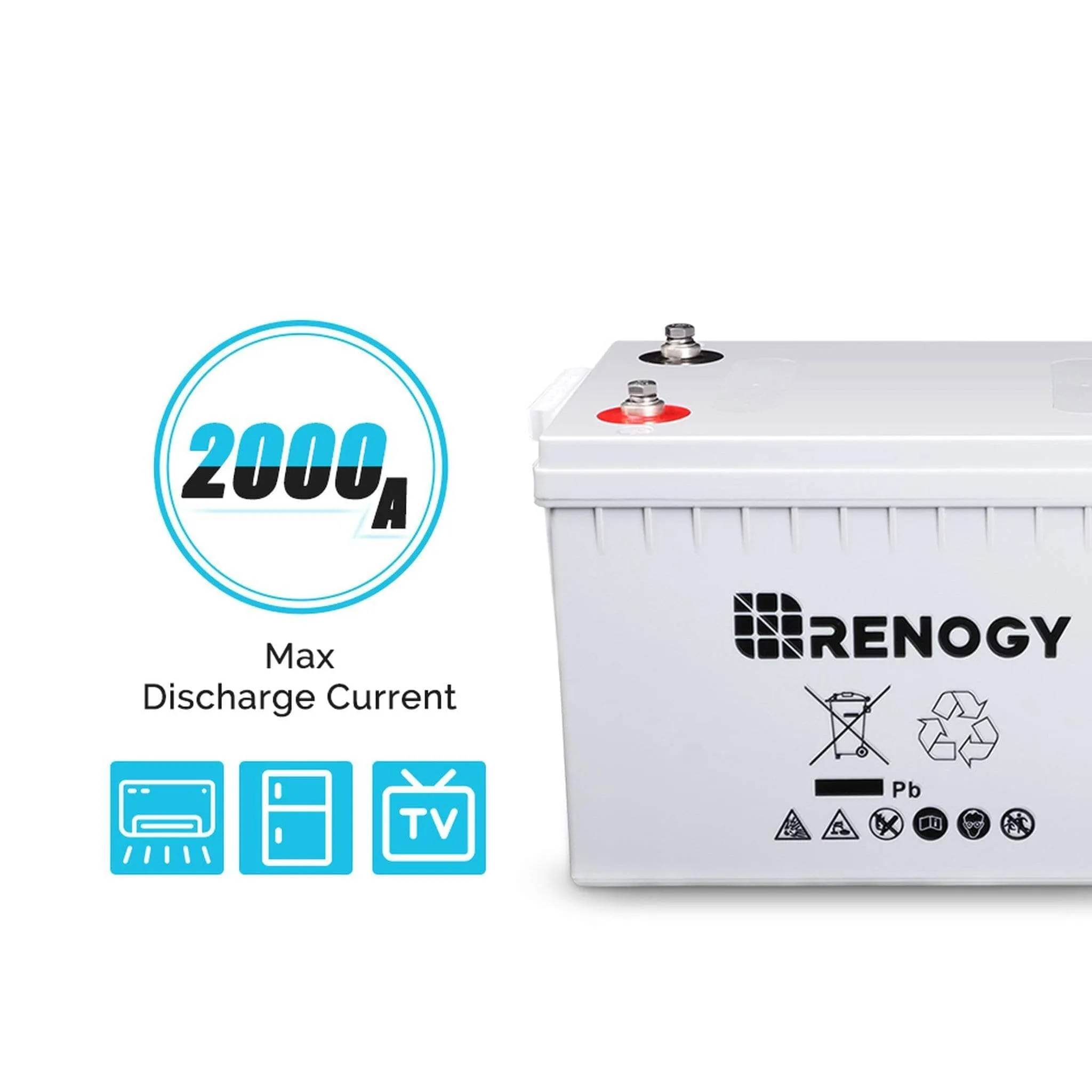

Max Discharge Current: 2000A (5 seconds)	Max Charge Current: 60A
Normal Operating Temperature: 77°F±9°F / 25°C±5°C	Operating Temperature Range:Discharge: -4°F~140°F / -20°C~60°C; Charge: 32°F~122°F / 0°C~50°C
Storage Temperature Range: -4°F~140°F / -20°C~60°C	Self Discharge Rate: ≤3% / month (25°C / 77°F)
Terminal Bolt Size: M8 x 1.25 x 16 mm	Container Material: ABS

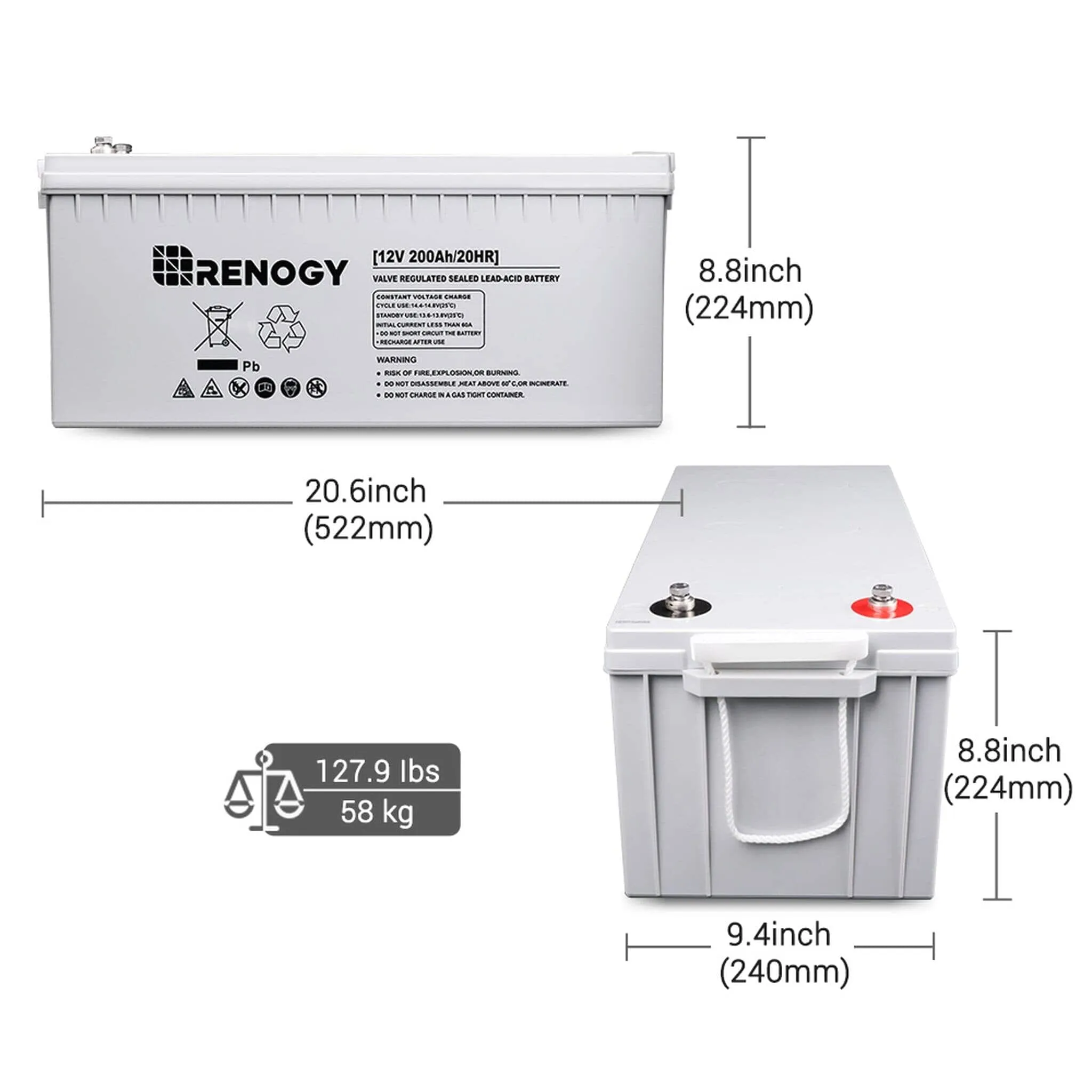

Dimension: 20.6 x 9.4 x 8.8 inch / 522 x 240 x 224 mm	Weight: 127.9 lb. / 58 kg
Recommended Terminal Torque: 88.5~106.2 inch·lb / 10~12 N·m
